- Place of Origin: China
- Brand Name: lasermen
- Model Number: LM-6040

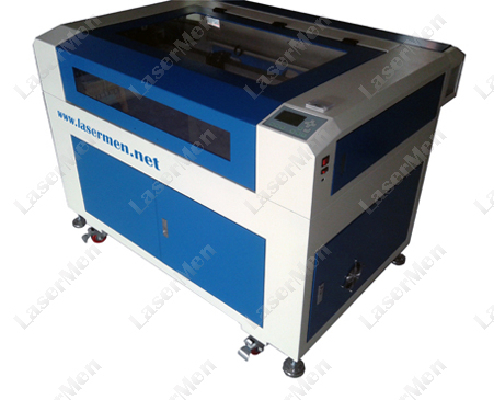

LM-6040 CO2 laser engraver, able to engrave and cut various non-metals, like paper, acrylic, double-color plate, marble, wood, textile, leather, glass, etc. Widely applied in craft gifts, Chinese paper cutting, advertising signs, clothes, furniture and many other industries. Can be configured with lifting table, honeycomb table, rotary, etc.
- Place of Origin: China
- Brand Name: lasermen
- Model Number: LM-6040
Machine Specifications
Machine description: | LM-6040 Laser Machine |
Work area size | 600x400mm |
Laser type: | Hermetic and detached CO2 laser tube |
Laser power: | 40 / 60 / 80-watt |
Cooling mode: | Circulating-water-cooling |
Power adjustment: | 0-100% controlling, no segment and adjusting by software |
Machine control and drive: | Speedy DSP controlling, stepper motor |
Max engraving speed: | 60000mm/min |
Max cutting speed: | 50000mm/min |
Repeating location: | 0.01mm |
Minimum character: | Chinese character: 1.5mm; crisscross-row: 1mm |
Working travel area: | 600x400mm, 600mm width with infinite length material feeding |
Working voltage: | AC220V 50Hz |
Working environment: | Temperature: 0-45℃, Humidity: 5%-95%, and congeal-water removed |
Controlling software language: | English, Chinese |
Dictate format: | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD,CoreDraw direct outputting |
