>> Description >>

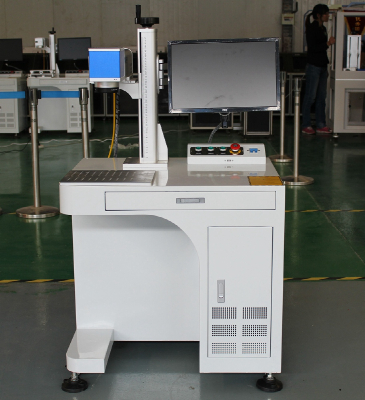

Fiber laser marking machine is a new generation laser marking system made with newest laser technique in the world. It is designed with fiber laser maker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function, the fiber laser making machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products, jewelry, images marking etc.

>> Features >>

1. Excellent beam quality: This series of fiber laser marking machines are much better than the traditional marking machine, condensation diameter is less than 20um, divergence angle is 1/4 of the semiconductor pumping source laser, used in accurate marking

2. Low use-cost: high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser

3. Maintenance-free Operation: There is no need of any maintenance for laser, or to adjust /clean the lens

4. Fast marking speed, 2-3 times faster than the traditional marking machine

5. Long working life: using fiber laser as pumping source, the working hours can reach as long as 100,000 hours

6. Rotary worktable system is optional, thus, accomplish marking on cambered surface.

7. Air-cooling, no water chiller like YAG laser marker, easy transportation, also have the portable type.

8. This machine cannot be affected by bad environment and the temperature change.

9. Small size and light weight

10. >> Applicable Materials >>

11. Gold and silver, diamond, Stainless steel, Copper, Iron, Aluminum, Plastic, PVC, Ceramics, PCB, Bamboo, marble products, almost metal and non-metal materials.

13. >> Applicable industrial >>

14. Widely used in automobile, motorcycle parts, aerospace components, integrated circuit chips, food and beverage packaging tobacco, the phone keypad, battery, electronic components, computer parts and peripherals, hardware and tools, stainless steel utensils, electrical products, communications products, medical equipment, sanitary ware, clocks and watches and jewelry, industrial bearings, wire and cable, costume jewelry, and many other fields of graphics and text markings.

16. >> About color of mark >>

17. The color after marked can be black or colorless, which is controlled by changing data of control system easily.
