- Place of Origin: China
- Brand Name: lasermen
- Model Number: LM-1490
Overview

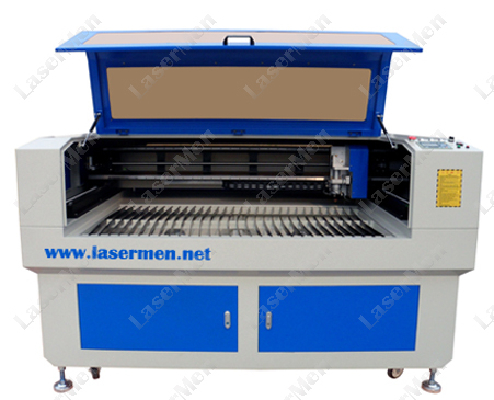

The machine uses US Synrad RF 200W laser, able to cut both metallic and nonmetallic materials. The laser head is US LASERMECH cutting head, with auto focusing system, which facilitates metal sheets cutting. The machine X and Y are solid cast aluminium structure. Driving system is Japan Panasonic servo motors and drivers. All of these optimize the machine stability, precision and lifetime.
Synrad 200W laser features:
- 200 Watts
- Near-Perfect Beam Quality
- Integrated RF
- Longer Resonator Design = Excellent Power Stability
- Water Cooled
- Ruggedized 3-point mounting system
- Metric and English Mounting, Standard
- Place of Origin: China
- Brand Name: lasermen
- Model Number: LM-1490
Machine
Specifications
Machine description | |
Output Power | CO2 RF 200-watt |
Work area size | 1400x900mm, 1400mm width with infinite length material feeding |
Mode Quality | M2<1.2 ± 0.1 |
Ellipticity | <1.2 |
Rise Time | <150μsec |
Beam Diameter | 4.5mm |
Beam Divergence (full angle) | 4.0mR |
Wavelength | 10.2-10.7μm |
Power Stability: |
|
Polarization | Linear (Horizontal) |
Cooling | Water cooling |
Heat Load (max) | 4000W |
Flow Rate (18-22°C) | 2.0 GPM, <60PSI |
Input Voltage / Current | 96 VDC / 36A |
Controlling software language: | English, Chinese |
Dictate format: | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD, CoreDraw direct outputting |
